Intelligent media motherboard robot motherboard subway screen main control board display motherboard

Short Description:

Some common features of intelligent media motherboards may include:

High-speed data transfer: They often have support for the latest high-speed interfaces such as USB 3.0 or Thunderbolt, allowing for fast data transfer rates between external storage devices.
Multiple expansion slots: These motherboards often have multiple PCIe slots to accommodate additional graphics cards, RAID controllers, or other expansion cards required for media-intensive tasks.
Enhanced audio and video capabilities: Intelligent media motherboards may feature built-in high-definition audio codecs and dedicated video processing units for superior sound and video quality during media playback.
Overclocking capabilities: They may have advanced overclocking features that allow users to push their hardware to higher frequencies, delivering enhanced performance for demanding media applications.
Robust power delivery: Intelligent media motherboards typically have high-quality power delivery systems, including multiple power phases and robust voltage regulation, to ensure stable power supply to all components, even under heavy loads.
Efficient cooling solutions: They often come with advanced cooling features such as larger heatsinks, additional fan headers, or liquid cooling support to keep the system temperature in check during extended media processing.

Send email to us

Product Detail

Product Tags

Product Description:

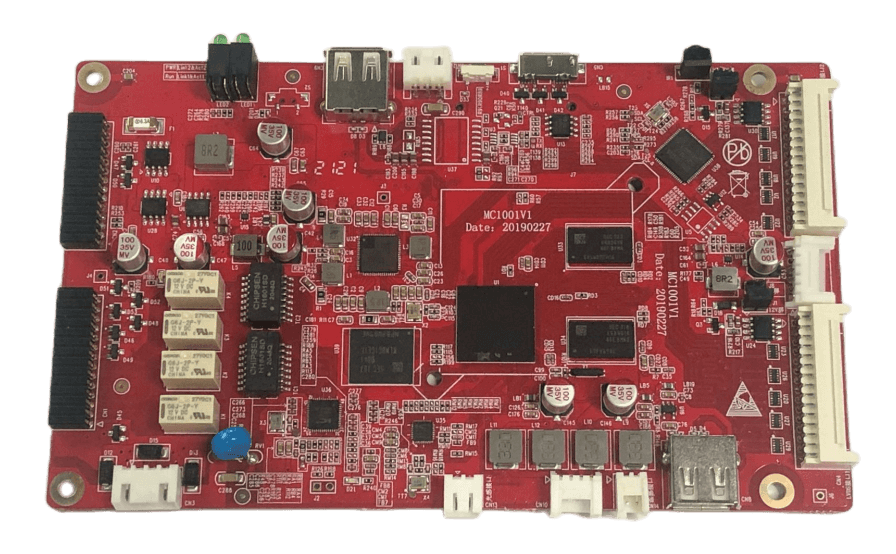

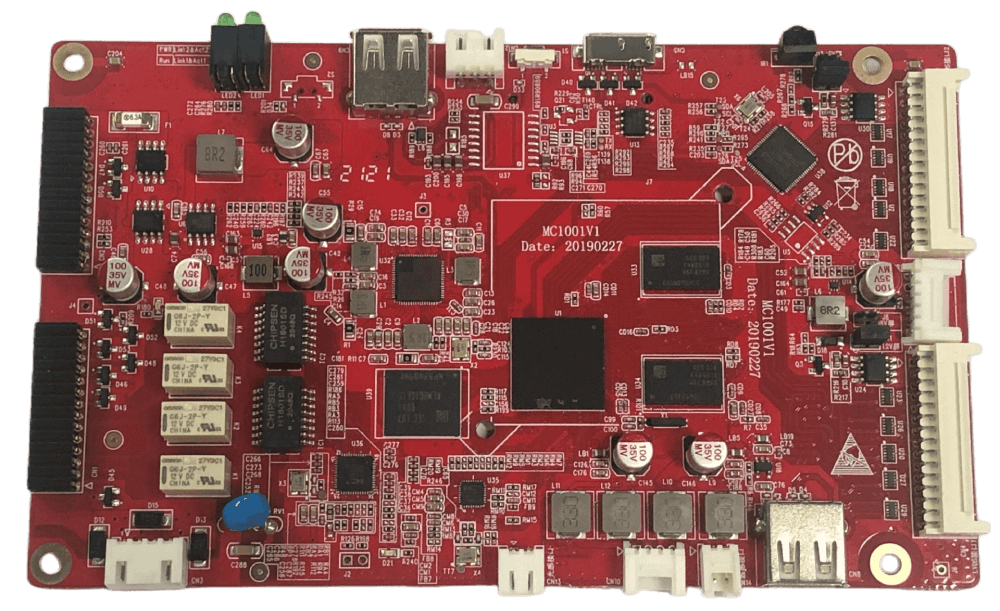

Multi -functional intelligent media motherboard MC1001V1 is based on the T3 platform of the full -minded car regulatory chip T3 platform. It is mainly used for the content display and intelligent control of the vehicle LCD display product. It can also be used for smart display terminal products, video terminal products, industrial automation terminal products, etc. Support H.264 hard decoding, Ethernet flow media coding, network linkage control, etc. Data synchronization control adopts the mode of RS485 and Ethernet. The two network communication methods can be actively switched to each other, and mutual redundant backup. The motherboard via the LVDS interface 1 and LVDS interface 2, two dual -channel LVDS interfaces, which can realize the two -screen different display dual -screen and display function. Each interface supports the maximum resolution 1920*1080 60Hz, and the video output format VESA and Jeida. Support dual -screen with different display and dual -screen different display; support the flexible design of different voltage LCD modules.

Feature description

Support high -definition screens show that maximum support of 1080P video decoding and image output, supporting dual -screen and dual -screen different display;
Support TS streaming video decoding and local video program playback;
Support remote OTA, which can achieve UI, applications, and remote upgrades at the bottom;
Support infrared remote control, automatic backlight brightness adjustment, U disk and SD card storage expansion function;
Support energy -saving mode, and ultra -low power standby;
Support the system's self -recovery function. After the system is abnormal or the main chip is abnormal, the system detects the MCU to restart the motherboard;
Using our display UI visual editing software can achieve display new UI design, UI modification, UI upgrade, etc.;
Reading, parameter modification, remote upgrade, log query and analysis can be read through the upper machine or management platform;

Support the intelligent detection function of the device. The system can detect the built -in module and network status of the device. You can actively report the device failure, the intelligent Bypass network active switching, the display of the screenshot of the display content;
Car-level design, which meets the ultra-width temperature -40 ℃ ～+85 ℃. The surface of the motherboard has three anti-coating protection, which can prevent moisture, salt fog, and mold.
The motherboard meets 100,000 hours of super long service life;
In line with the relevant standards of EN50155, EN50121, EN50126, IEC61373 in the rail industry, effectively prevent vibration, high temperature, low temperature and electromagnetic interference;
PCB board reaches UL94LV-0 fire prevention level requirements;
Consistent with the relevant standards of automotive electronic GB/T_28046
