Altera image processing HDMI input 4K Gigabit network port DDR3 Featured Image
  • Altera image processing HDMI input 4K Gigabit network port DDR3
  • Altera image processing HDMI input 4K Gigabit network port DDR3

Altera image processing HDMI input 4K Gigabit network port DDR3

Short Description:

Hisilicon Hi3536+Altera FPGA Video Development Board HDMI Input 4K Code H.264/265 Gigabit Network Port


Product Detail

Product Tags

Core parameters and differences

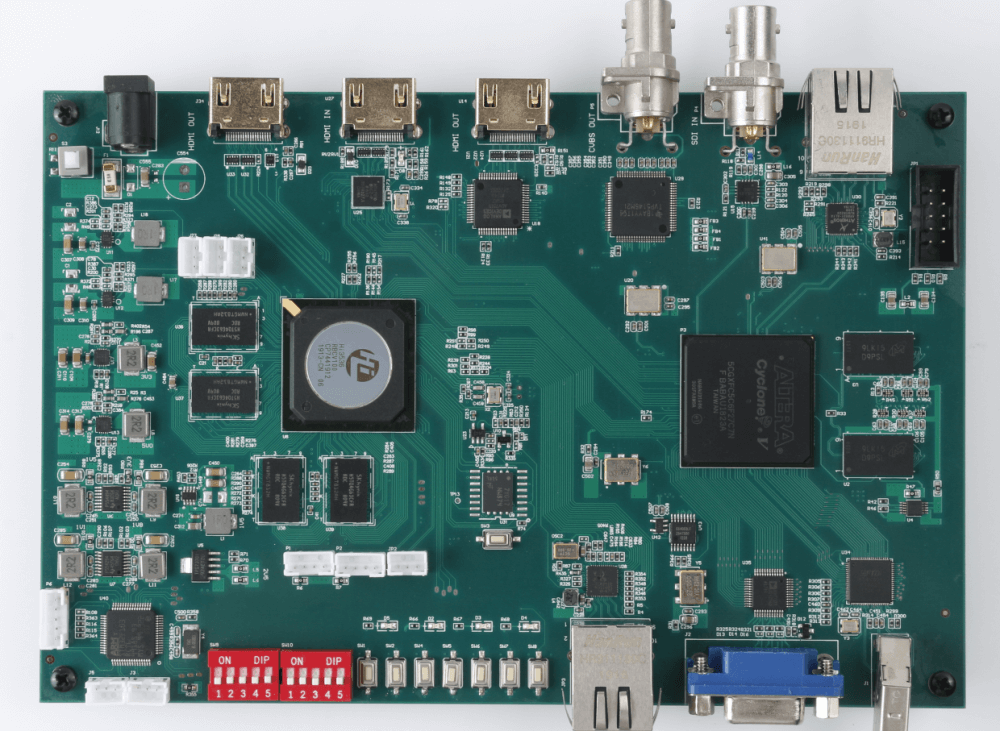

sgfd
  • Kernel:
  • Memory: DDR3*6
  • FPGA chip model: Altera cyclone (5CGXFC5C6F27C7N)
  • Hisilicon Chip: Hi3536
  • ARM chip: STM32F103
  • Logic unit number
  • Is there still a capacity of the Flash model?
  • Speed level

interface and function

  • HDMI interface 2 1.4 (ADV7513 and ADV7610) 1 2.0
  • CVBS (TVP5146)
  • SDI (L0344)
  • Connect to Hisilicon Gigabit Port (RTL8211)
  • Connect FPGA Gigabit (AR8031)
  • USB3.0
  • Vga adv7123
  • Serial port
  • Button: 8
  • DIP switch:
  • 5 LED

Power parameters and voltage

  • Input voltage: 12V
  • Input current: maximum 9A protection
  • Power supply: 12V9A power supply
  • packing list
  • Structure
  • Size: 125*188mm
  • Number of stack layers: use level 8 PCB board design
  • Applicable scenarios: vehicle video decoding, video processing, high -speed transmission function, high -frequency video, etc.
