Smart Door semi-automatic lock plate kit

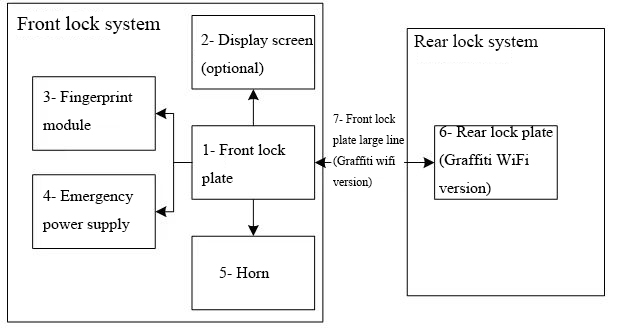

一、 Product composition diagram
一、 Specification parameters
| Item | Argument |
| Communication mode | WiFi, Bluetooth |
| Unlocking mode | Fingerprint, password, CPU card, M1 card |
| Operating voltage | DC 6V (4 1.5V alkaline batteries) |
| Standby supply voltage | USB 5V power supply |
| Static-power-consumption | ≤60uA |
| Dynamic-power-consumption | ≤350mA |
| Card reading distance | 0~15mm |
| Cipher keyboard | Capacitive touch keyboard, 14 keys (0~9, #, *, doorbell, mute) |
| Display screen | OLED (optional) |
| Key capacity | 100 codes, 100 key cards, 100 fingerprints |
| Fingerprint sensor type | Semiconductor capacitive |
| Fingerprint resolution | 508DPI |
| Induction array | 160*160 pixel |
| Voice-operated guidance | support |
| Voice low battery alarm | support |
| Voice anti-prying alarm | support |
| Trial and error freezing | ≥5 times |
| Rights-management record | support |
| Unlocking records the local storage capacity | Supports a maximum of 1000 files |
| Unlock record power failure is not lost, network remote synchronization | support |
| Nethra coils | support |
| ESD protection | Contact ±8KV, air ±15KV |
| Strong magnetic field | > 0.5 T |
| Strong electric field | >50V/m |
| Operating temperature | -25°C—70°C |
| Storage temperature | 23±3°C |
| Working humidity | 5%RH-93%RH |
| Storage humidity | 55±10%RH |
一、 Conventional functions
| Serial number | Function | Instructions |
| 1 | System management | In the initial state, the system does not have an administrator password. After power-on, press *# to set the management password. In the non-initial state, press *# to enter the administrator menu after successful verification. |
| 2 | Key management | Store up to 100 passwords, 100 fingerprints, and 100 sensor cardsThe password is 6-12 characters (supports a maximum of 30 virtual bits). The sensor card includes the M1 card and the CPU card |
| 3 | Dynamic cipher | “One-time password” wechat small program, enter the administrator password to generate a dynamic password |
| 4 | APP function | Graffiti wifi version support includes remote unlock, temporary password, record view, permission list view and other functions |
| 5 | Normally open mode | After entering the menu, set it in the system management, open the normally open mode, and the door lock can be opened directly by pressing the handle. Normally on mode is turned off after any valid verification. |
| 6 | System initialization | To restore the system factory Settings, hold down the initialization key for 5s or enter the Management menu. |
| 7 | Skid detection | After entering the menu, set it in system management, and turn off the anti-skid detection alarm sound temporarily after any effective verification. |
| 8 | Language setting | After the menu is displayed, set the Chinese or English menu and voice prompt in system management. |
| 9 | Volume setting | After entering the menu, set the volume to high, Medium, or low, or Mute in system Management. |
| 10 | Record query | The screen version can query user records, unlocking records, alarm records, and operation records locally in the door lock. A maximum of 1000 records are supported. |
| 11 | Time setting | After entering the management menu, you can manually set the local time. The time will be synchronized after networking. |
| 12 | Trial and error alarm and lock | If the verification error occurs for three consecutive times within five minutes, the system displays an audible and visual prompt. If the verification error occurs for five consecutive times, the system freezes for 95 seconds. |
| 13 | Low current alarm | When the battery voltage is lower than 4.8V, when the battery voltage is higher than 4.5V, wake up the rear door lock to indicate that the battery is low and can be unlocked normally. If the battery voltage is lower than 4.5V, it indicates that the battery is exhausted and cannot be locked. |
| 14 | Anti-skid alarm | When the door lock is opened for anti-skid detection, the switch is detected to pop off, or the switch is detected to pop off when waking up, and the door lock alarms. After legal verification, stop the alarm. |
| 15 | Emergency power supply | When the battery is low, an external power supply such as an external charging bank can be used to power the emergency door. |
| 16 | Network configuration | For the wifi version, you can configure wifi after entering the system Settings. |
