Original Arduino MKR Zero development board ABX00012 Music/Digital audio I2S/SD bus
The Arduino MKR ZERO is powered by Atmel’s SAMD21 MCU, which has a 32-bit ARMR CortexR M0+ core
MKR ZERO brings you the power of zero in a smaller format built in the MKR form factor The MKR ZERO board is an educational tool for learning 32-bit application development
Simply connect it to a computer using a micro-USB cable or power it through a lithium polymer battery. Since there is a connection between the analog converter of the battery and the circuit board, the battery voltage can also be monitored.
Product introduction

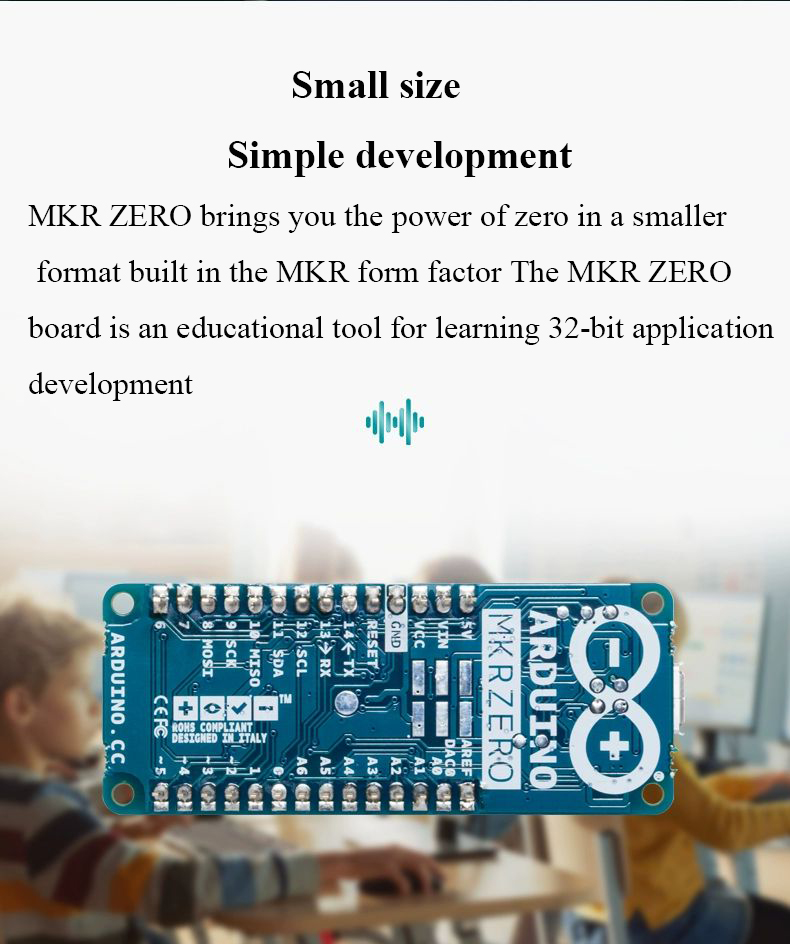

MKR ZERO brings you the power of zero in a smaller format built in the MKR form factor.

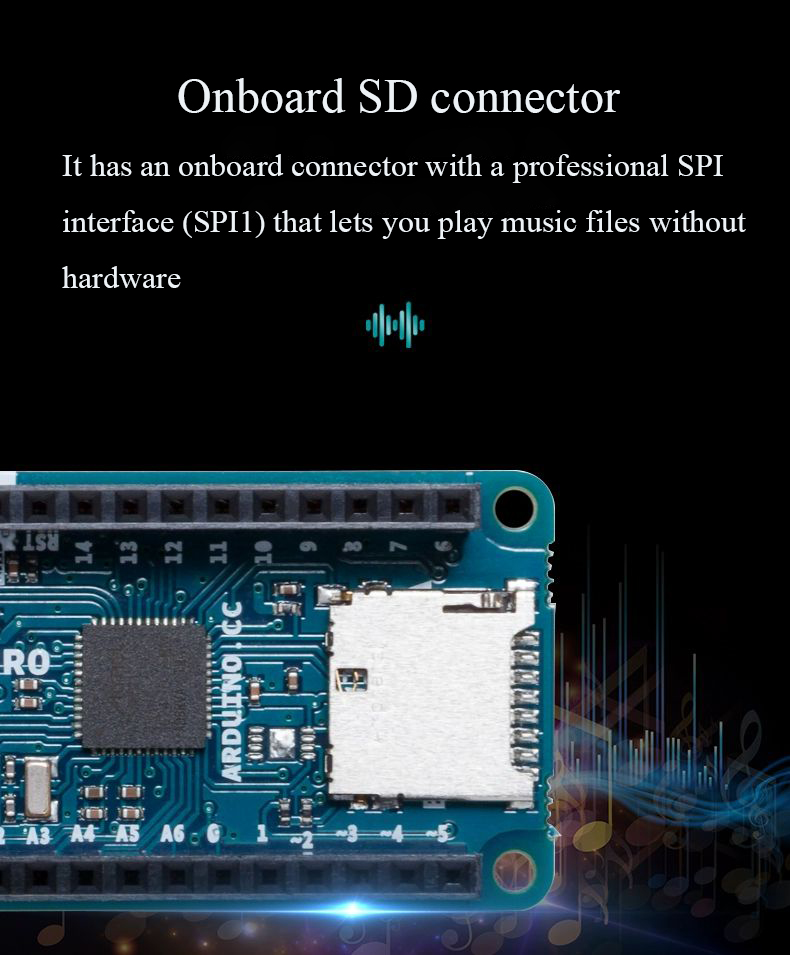

The MKR ZERO board is an educational tool for learning 32-bit application development. It has an onboard SD connector with a dedicated SPI interface (SPI1) that lets you play music files without additional hardware! The board is powered by Atmel’s SAMD21 MCU, which has a 32-bit ARMR Cortex⑧M0+ core.
The board contains the chips required to support a microcontroller; Simply connect it to a computer using a micro-USB cable or power it through a lithium polymer battery. Since there is a connection between the analog converter of the battery and the circuit board, the battery voltage can also be monitored.
Main features:
1. Small size
2. Number crunching ability
3. Low power consumption
4. Integrated battery management
5. USB host
6. Integrated SD management
7. Programmable SPI, I2C and UART
|
Product parameter |
|
| Microcontroller | SAMD21 Cortex-M0+ 32-bit low power ARMR MCU |
| Circuit Board Power Supply (USB/VIN) | 5V |
| Supported batteries (*) | Li-Po single cell,3.7V,700mAh minimum |
| 3.3V pin DC current | 600mA |
| 5V pin DC current | 600mA |
| Circuit operating voltage | 3.3V |
| Digital I/O pins | 22 |
| PWM pin | 12 (0,1,2,3,4,5,6,7,8,10,A3-or18-,A4-or 19) |
| UART | 1 |
| SPI | 1 |
| I2C | 1 |
| Simulate the input pin | 7(ADC 8/10/12 bit) |
| Analog output pin | 1 (DAC 10 bit) |
| External interrupt | 10 (0, 1,4,5, 6, 7,8, A1 -or 16-, A2 – or 17) |
| Dc current for each I/O pin | 7 mA |
| Flash memory | 256 KB |
| Boot loader’s flash memory | 8 KB |
| SRAM | 32 KB |
| EEPROM | No |
| Clock speed | 32.768 kHz (RTC), 48 MHz |
| LED_ BUILTIN | 32 |
| Full speed USB devices and embedded hosts | |
