Raspberry Pi CM4

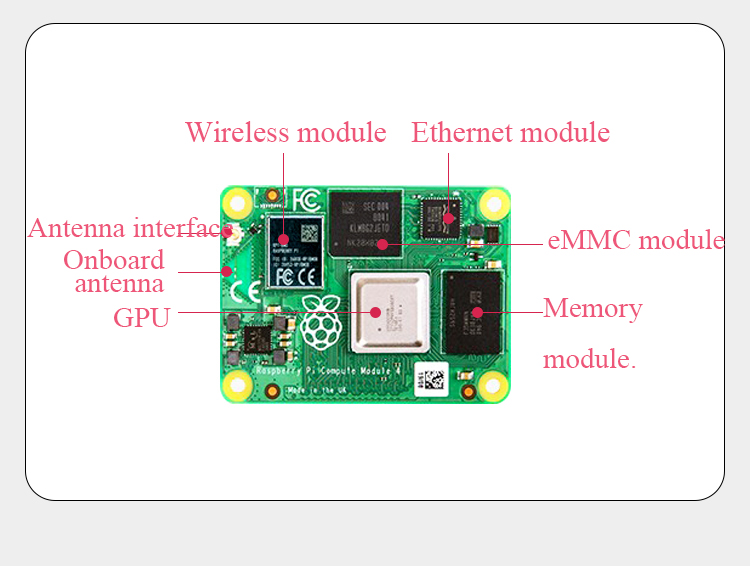

Powerful and small in size, Raspberry Pi Compute Module 4 combines the power of the Raspberry PI 4 in a compact, compact board for deeply embedded applications. The Raspberry Pi Compute Module 4 integrates a quad-core ARM Cortex-A72 dual video output along with a variety of other interfaces. It is available in 32 versions with a range of RAM and eMMC flash options, as well as with or without wireless connectivity.
| Processor | Broadcom BCM2711 quad-core Cortex-A72 (ARMv8) 64-bit SoC @ 1.5GHz |
| Product memory | 1GB, 2GB, 4GB, or 8GB LPDDR4-3200 memory |
| Product flash | 0GB (Lite), 8GB, 16GB or 32GB eMMC flash |
| Connectivity | Dual-band (2.4 GHz/5.0GHz) IEEE 802.11b/g/n/ac
Wireless WiFi, Bluetooth Low Energy 5.0,BLE, onboard antenna or access to external antenna |
| Support IEEE 1588 Gigabit Ethernet | |
| USB2.0 interface x1 | |
| PCIeGen2x1 port | |
| 28 GPIO pins | |
| SD card interface (only for versions without eMMC) | |
| Video interface | HDMI interface (support 4Kp60) x 2 |
| 2-lane MIPI DSI display interface | |
| 2-lane MIPI CSI camera port | |
| 4-lane MIPI DSI display port | |
| 4-lane MIPI CSI camera port | |
| Multimedia | H.265 (4Kp60 decoded); H.264 (1080p60 decoding,1080p30 encoding); OpenGL ES 3.0 |
| Operating voltage | 5V DC |
| Operating temperature | -20°C to 85°C Ambient temperature |
| Overall dimension | 55x40x4.7mm |
