High precision board, used for medical instruments

Short Description:

Application:
Aerospace, BMS, Communication, Computer, Consumer Electronics, Home appliance, LED, Medical Instruments, Motherboard, Smart electronics, Wireless charging.

Feature: Fexible PCB, High density PCB.

Insulation Materials: Epoxy Resin, Metal Composite Materials, Organic Resin.

Material: Aluminum Covered Copper Foil Layer, Complex, Fiberglass Epoxy, Fiberglass Epoxy Resin & Polyimide Resin, Paper Phenolic Copper Foil Substrate, Synthetic Fiber.

Processing Technology: Delay Pressure Foil, Electrolytic Foil.

Model Number: XinDaChang-BC-008

Brand Name: XinDaChang PCB assembly

Send email to us

Product Detail

Product Tags

Product Specification:

Item NO	2 Orders 8 layers Immersion Gold OSP HDI PCB assembly
Material	FR-4
Layers	8 Layers
Finishing Thickness	0.70mm
Surface Finishing	Immersion Gold+OSP
Trace Width/ Trace Space	Inner: 0.05mm/0.05mm Outer: 0.05mm/0.05mm
Min Hole Size (um)	Mechanical Drilling: 0.2mm Laser Drilling: 0.1mm

Quality Control

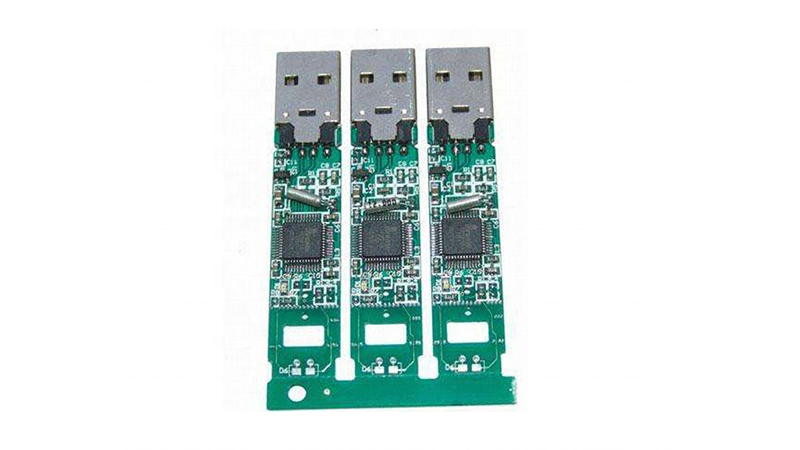

High precision board, used for medical instruments2

a. 100％AOI,100％E-Testing,100％FQC + FQA
b. SPC and CPK programs
c. Lean Manufacturing and 7S programs
d. Advanced inspection and laboratory equipment
e. Standard QA report with every shipment
f. RoHS Compliance

Enterprise Advantage

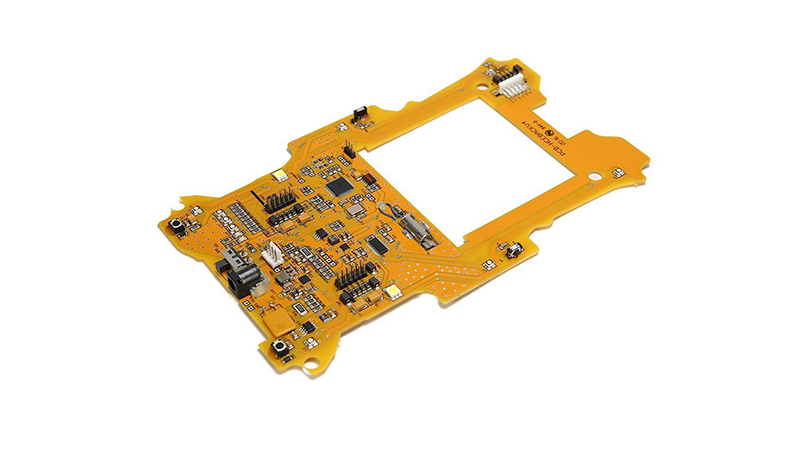

High precision board, used for medical instruments

a. One stop, multi variety, mass production, quick response, meet the all-round needs of different customers
Offer
a. Gerber files
b. PCB parameters and requirements sheet
c. Demand Quantity

Delivery

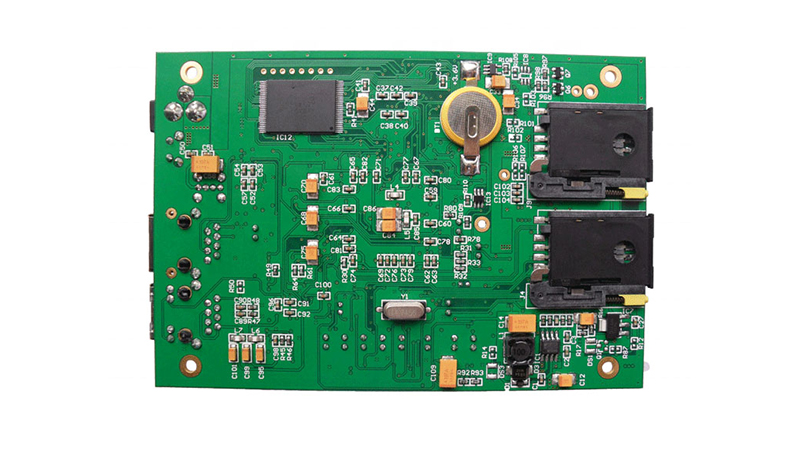

High precision board, used for medical instruments1

a. For sample ,delivery time roughly 15 working day.
b. For small quantities, delivery time roughly 30 working day.
c. For mass production, delivery time roughly 49 working day.
Special delivery dates will depend on actual conditions, but we will do our best to support and meet your needs.
