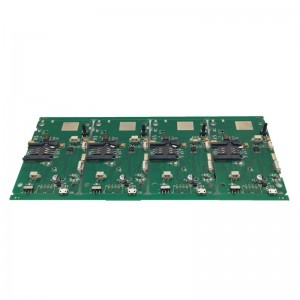

  • Intelligent control board design pcb&pcba manufacture

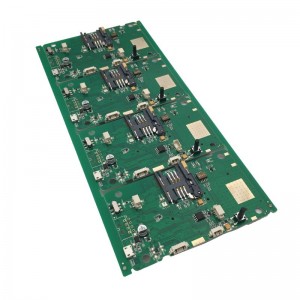

  • Intelligent control board design pcb&pcba manufacture

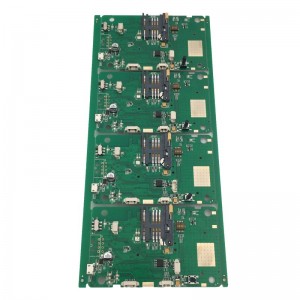

  • Intelligent control board design pcb&pcba manufacture

Intelligent control board design pcb&pcba manufacture

Short Description:

Key Specifications/ Special Features:

Our Service

• One-stop turnkey OEM/ODM PCBA services.

• pcb,pcb design,PCBA, PCB assembly: SMT, PTH and BGA,Contract Manufacturing,Turnkey service,Engineering Services.

• Electronic components sourcing and purchasing.

• Program burning.

• Test: AOI, X-Ray, in-circuit test (ICT), functional test (FCT).

• Rapid prototyping, NPI, DFM/DFT, fixture creation, packaging design.

• Wire harness, cable assembly, sheet metal assembly ,Plastics and Molds.

• Final product assembly.


  • Model Number: XinDaChang-PCBA-1-#6283
  • Brand Name: XinDaChang
  • Origin: China
  • Small Orders: Accepted

    • Product Detail

    Product Tags

    PCBA Capabilities:

    SMT assembly including BGA assembly
     Accepted SMD chips  01005, BGA, QFP, QFN, TSOP
     Component height  0.2-25mm
     Min packing  0201
     Min distance among BGA  0.25-2.0mm
     Min BGA size  0.1-0.63mm
     Min QFP space  0.35mm
     Min assembly size  (X*Y) 50*30mm
     Max assembly size  (X*Y) 350*550mm
     Pick-placement precision  ±0.01mm
     Placement capability  0805, 0603, 0402, 0201
     High pin count press fit available
     SMT capacity per day  2,000,000 point

    Our Advantage

    • Strict product liability, taking IPC-A-160 standard
    • Engineering pretreatment before production
    • Production process control
    • 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
    • 100% AOI inspection, including X-ray, 3D microscope and ICT
    • High-voltage test, impedance control test
    • Micro section, soldering capacity, thermal stress test, shocking test
    • No minimum order quantity request
    • Quick and on-time delivery
    • ISO 9001:2015,ISO13485:2016 ,SGS certified and RoHS Directive-compliant Certificated
    • High-performance Samsung & JUKI SMT machines
    • High-precision 0201 size components SMT technology
    • Materials/components are from original manufacturers,Reliable components sourcing channels (strategic cooperation with arrow and AV net, strict  supplier audit system)
    • Professional engineering staff to provide technical support
    • High/maximum and low/medium volume accepted
    • Sign NDA with partners to keep our partner's technical confidential

    PCB assembly production flow:

    Sensor control system
    • Material sourcing-IQC-stock-material to SMT-SMT line loading-solder paste/glue printing-chip mount-reflow-100% visual inspection-automated optical inspection (AOI)-SMT QC sampling-SMT stock-material to PTH-PTH line loading-plated through hole-wave soldering -touch up-100% visual inspection-PTH QC sampling-in-circuit test (ICT)-final assembly-functional test (FCT)-packing-OQC sampling-shipping

    Requested information for PCB assembly:

    Military control system
    • Gerber files
    • Bill of material
    • Testing procedure and test fixtures
    • Programming files and programming tool
    • Schematic files if necessary

    Shipping Information

    FOB Port

    Shenzhen

    HTS Code

    8509.90.00 00

    Lead Time

    15–30 days

    Main Export Markets

    Fire alarm control system
    • - Asia
    • - Australasia
    • - Central/South America
    • - Eastern Europe
    • - Mid East/Africa
    • - North America
    • - Western Europe
