Wildfire LubanCat LubanCat 1 developed board card computer image processing RK3566

Short Description:

· Luban Cat 1 is a low-power, high-performance, on-board a large number of commonly used peripherals, can be used as a high-performance single-board computer and embedded motherboard, mainly for makers and embedded entry-level developers, can be used for display, control, network transmission and other scenarios.

· Rockchip RK3566 is used as the main chip, with Gigabit Ethernet port, USB3.0, USB2.0, Mini PCle, HDMI, MIPI screen interface, MIPI camera interface, audio interface, infrared reception, TF card and other peripherals, leading to 40Pin not used pin, compatible with Raspberry PI interface.

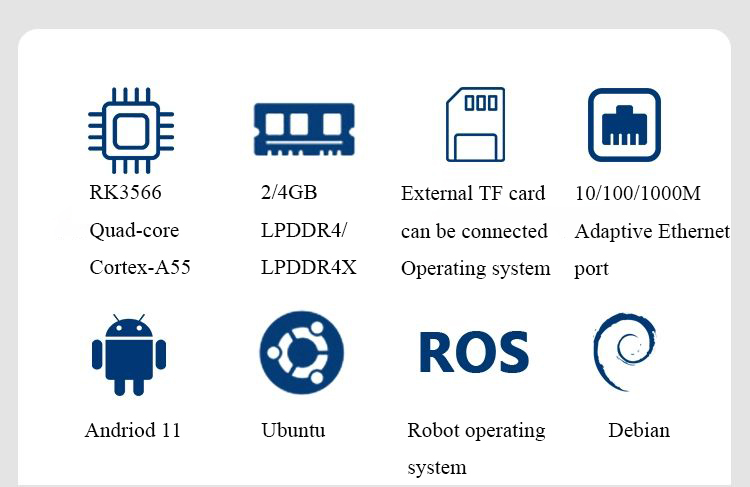

·The board is available in a variety of memory and storage configurations and can easily run Linux or Android systems.

· Built-in independent NPU computing power up to 1TOPS for lightweight AI applications.

·Official support for mainstream Android 11, Debain, Ubuntu operating system image, can be applied to different application environments.

· Fully open source, provide official tutorials, provide a complete SDK driver development kit, design schematic and other resources, easy for users to use and secondary development.

Send email to us

Product Detail

Product Tags

Model name	Luban cat 0 network port version	Luban Cat 0 Wireless version	Luban Cat 1	Luban Cat 1 Online edition	Luban Cat 2	Luban Cat 2 Online edition
Master control	RK35664 core，A55,1.8GHz,1TOPS NPU				RK3568 4CoreA55, 1.8GHz 1TOPS NPU	RK3568B2 4CoreA55, 2.0GHz 1TOPS NPU
Store eMMC	None eMMC Use SD card for storage		8/32/64/128GB
Internal memory	1/2/4/8GB
Ethernet	Giga*1	/	Giga*1	Giga*2		2.5G2 giga2
WiFi/Bluetooth	/	Onboard	Available via PCle External module	Onboard	External modules can be connected via PCle
USB port	Type-C*2		Type-C1,USB Host2.01,USB Host3.0*1
HDMI port	mini HDMI		HDMI
Dimension	69.6×35mm		85×56mm		111×71mm	126×75mm

Model name	Luban Cat 0 Net interface version	Luban Cat 0 Wireless version	Luban Cat 1	Luban Cat 1 Online edition	Luban Cat 2	Luban Cat 2 Online edition
MIPI DSI Display interface (4Lane)	√	√	√	√	√	√
MIPI CSI Camera interface (4Lane)	√	√	√	√	√	√
40pin GPIO Pin arrangement interface	√	√	√	√	√	√
Audio output	X	×	√	√	√	√
Infrared receiver	×	X	√	√	√	√
PCle interface (Can be connected to external WiFi 4G modules)	X	×	√	X	√	√
M.2 Ports (Can be connected externally SSD hard drive)	X	×	X	×	√	×
SATA Hard disk interface	×	×	X	×	Available via FPC Interface expansion	√

Board name	LubanCat1
Power interface	5V@3A indicates the DC input and Type-C interface
Master chip	RK3566(quad-core Cortex-A55,1.8GHz,Mali-G52)
Internal memory	1/2/4/8GB,LPDDR4/4x,1056MHz
Store	8/32/64/128GBeMMC
Ethernet	10/100/1000M Adaptive Ethernet port *1
USB2.0	Type-A Interface 3(HOST):Type-C interface 1(OTG), firmware burning interface, shared with the power interface
USB3.0	Type-A Interface *1(HOST)
Debug serial port	The default parameter is 1500000-8-N-1
Short jumper	MaskRom through the hole; Recovery through the hole;
Audio interface	Headphone output + microphone input 2-in-1 interface
40Pin interface	Compatible with Raspberry PI 40Pin interface, support PWM,GPIO,I²C,SPI,UART functions
Mini-PCle	Can be used with full-height or half-height WIFI network card,4G module or other Mini-PCle interface module
SIM card interface	The SIM card function requires a 4G module to be used
HDMI	HDMI2.0 display interface, only support MIPI or HDMI display alone
MIPI-DSI	MIPI screen interface, can plug the wildfire MIPI screen, only support MIPI or HDMI display alone
MIPI-CSI	Camera interface, can plug the Wildfire OV5648 camera
Infrared receiver	Support infrared remote control
