Beaglebone AI BB black C Industrial WIRELESS Blue series development board
Short Description:
Product introduction

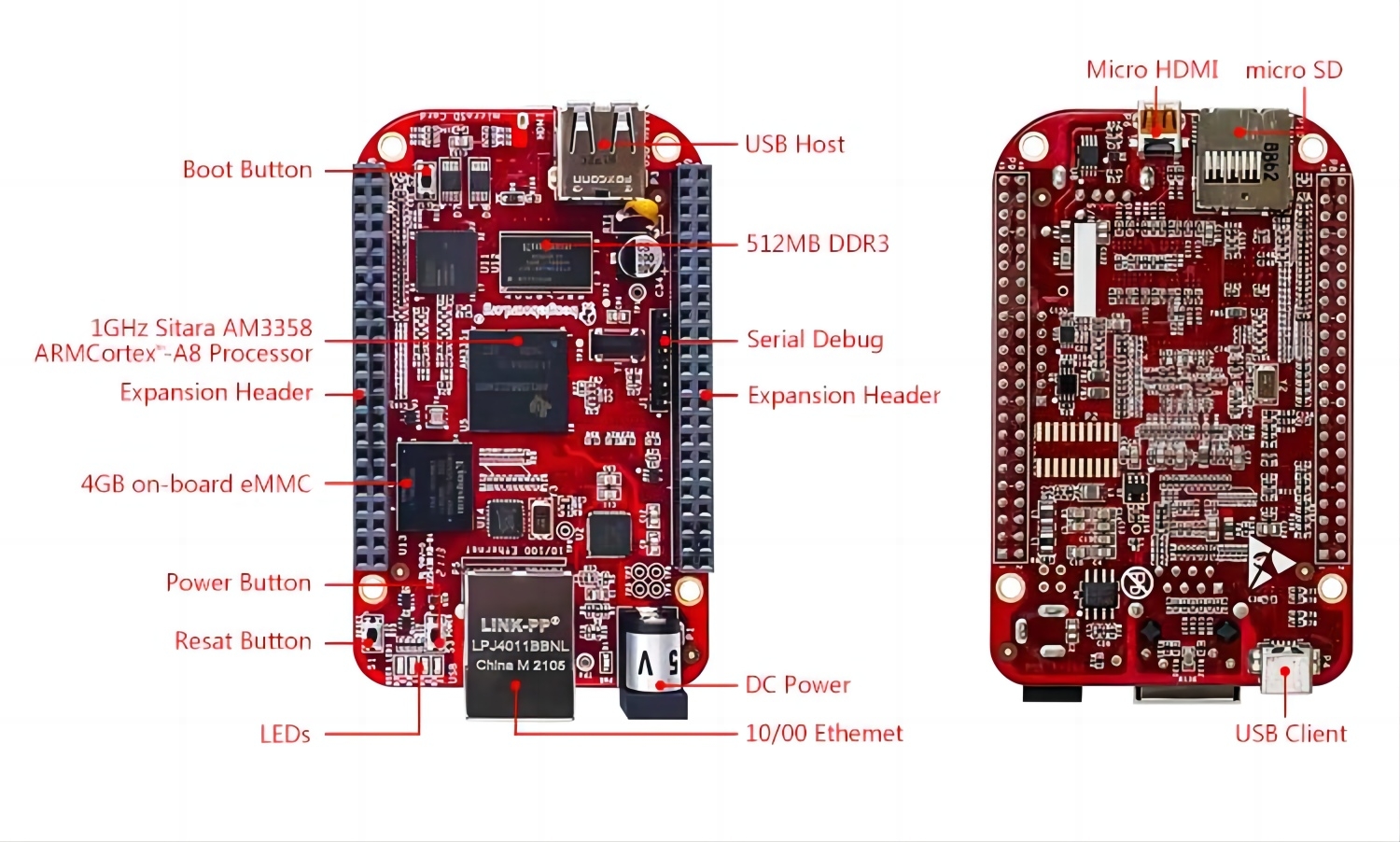

BEAGLEBONEBLACK is a low-cost, community-supported development platform for developers and hobbyists based on the ArmCortex-A8 processor. With just a USB cable, users can boot LINUX in 10 seconds and start development work in 5 minutes.
BEAGLEBONE BLACK’s on-board FLASH DEBIAH GNULIUXTm for easy user evaluation and development, In addition to supporting many LINUX distributions and operating systems :[UNUN-TU, ANDROID, FEDORA]BEAGLEBONEBLACK can extend its functionality with a plug-in board called “CAPES”, which can be inserted into two 46-pin dual-row expansion bars of BEAGLEBONEBLACK. Extensible for example for VGA, LCD, motor control prototyping, battery power and other functions.
Introduction/Parameters
BeagleBone Black Industrial meets the need for industrially rated single-board computers with an extended temperature range. The BeagleBone Black Industrial is also compatible with the original BeagleBone Black on software and Cape.
BeagleBoneR Black industrial based on the Sitara AM3358 processor
Sitara AM3358BZCZ100 1GHz,2000 MIPS ARM Cortex-A8
32-bit RISC microprocessor
Programmable real-time unit subsystem
512MB DDR3L 800MHz SDRAM,4GB eMMC memory
Operating temperature :-40°C to +85C
The PS65217C PMIC is used to separate the LDO to provide power to the system
SD/MMC connector for microSD cards
Product parameter
Processor：AM3358 1GHZ Arm Cortex@-A8
Memory :512MB DDR3
Flash :4GB eMMC onboard, 3D circular accelerator, NEON floating point accelerator, 2 PRU32-bit microcontrollers
Connectivity :USB client for power and communication, USB host Ethernet port, HDMI port, two 46 dual-bar female ports
Software compatibility
ebian, Android, Cloud9 IDE based on BoneScript/Node.js)
Example applications: robot, motor drive,Twitter printer, data backup, SDR base station, USB data acquisition, etc

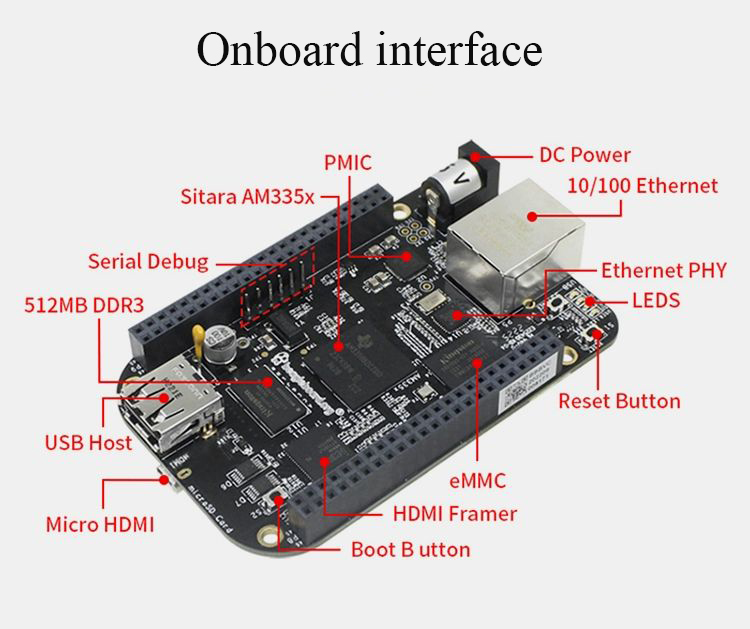

· A start select button
· One power button
· A reset button
· One LED power indicator
· Four user customized LED lights
· An HDMID type interface (16-bit color output, audio output supported)
· One LCD interface (support 24-bit output, P8 expansion interface extraction)
· One 10/10.0M Ethernet interface (RJ4 connector)
· A high-speed USB 2.00TG interface with integrated PHY (MiniUSB Type B connector)
· A high-speed USB2.0 HOST interface with integrated PHY (USBA connector)
· One TF card interface (compatible with SD/MMC)
· A 3-wire debugging serial port (6-pin 254 pitch connector)
· One HDMID type interface

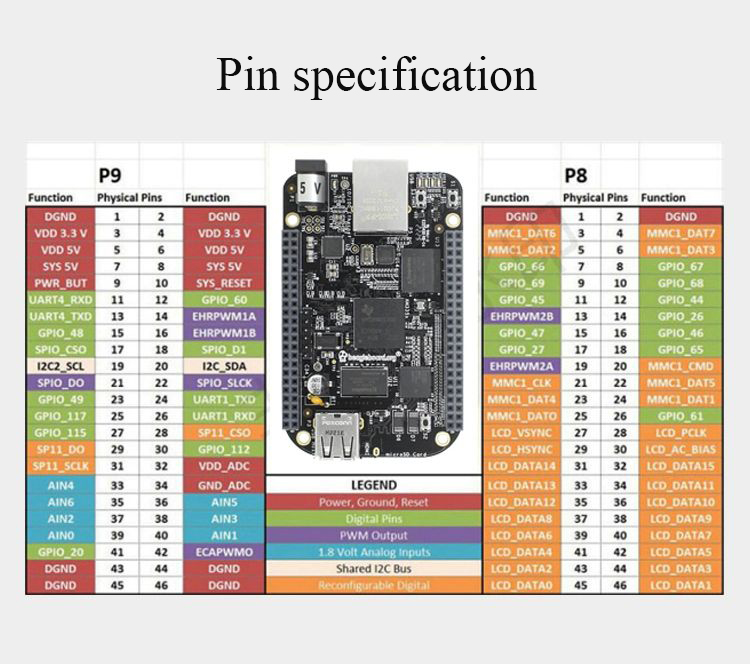

· Two expansion interfaces, can expand LCD, UART, eMMC, ADC, 12C,
· SPI and PWM interface
Introduction/Parameters
BeagleBone Black Industrial meets the need for industrially rated single-board computers with an extended temperature range. The BeagleBone Black Industrial is also compatible with the original BeagleBone Black on software and Cape.
BeagleBoneR Black industrial based on the Sitara AM3358 processor
Sitara AM3358BZCZ100 1GHz,2000 MIPS ARM Cortex-A8
32-bit RISC microprocessor
Programmable real-time unit subsystem
512MB DDR3L 800MHz SDRAM,4GB eMMC memory
Operating temperature :-40°C to +85C
The PS65217C PMIC is used to separate the LDO to provide power to the system
SD/MMC connector for microSD cards
Introduction/Parameters

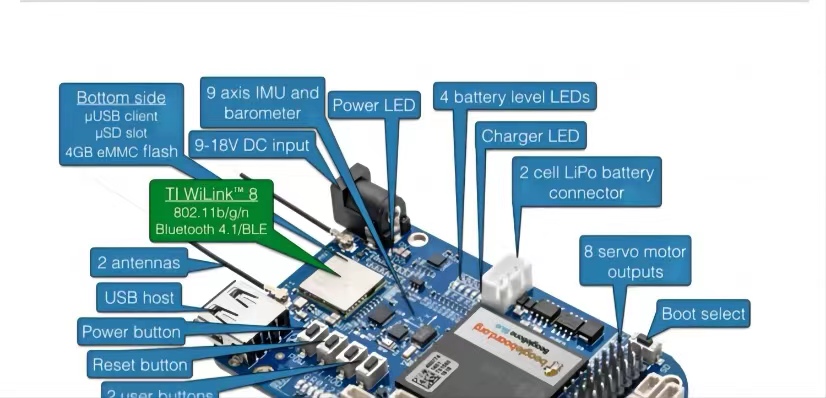

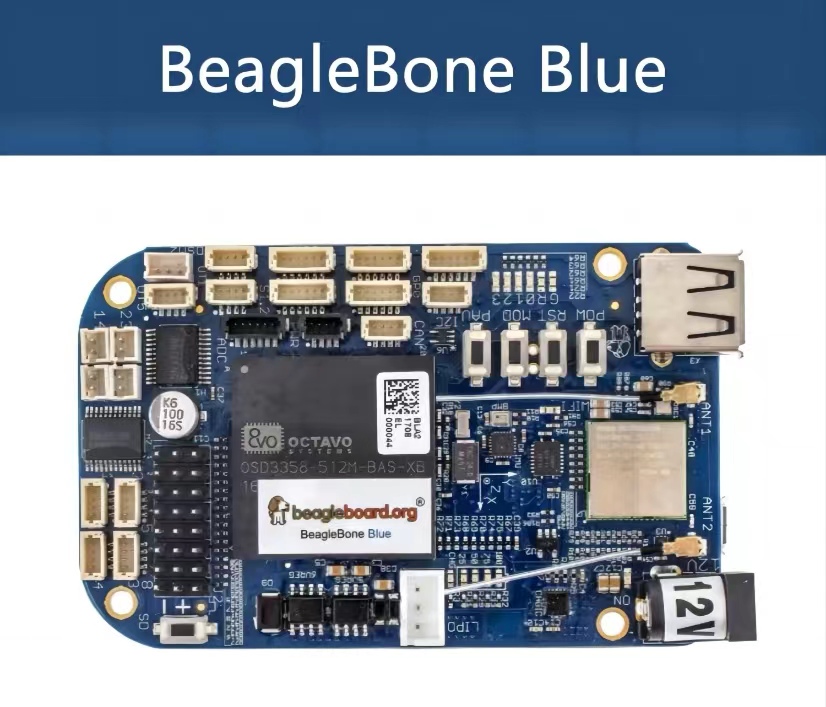

BeagleBone Blue is a robot controller based on the BeagleBone open hardware computer architecture. Using Linux system, fully open source with community support, providing flexible network performance and external device interface, you can quickly build cost-effective mobile robots.
AM335x 1GHz ARM Cortex-A8
SGX530 graphics accelerator
NEON floating point accelerometer
2x PRU 32bit 200MHz PRU
512MB DDR3 80OMHZ RAM
4GB embedded eMMC flash memory
Wi-Fi 802.11b /g/n, Bluetooth 4.1 and BLE
USB 2.0 customer master port
microSD card slot
Features a 9-axis IMU and barometer sensor
Motor control :8x 6V output, 4x DC electrode output, 4X orthogonal encoder input
Software compatibility ebian, Ardupilot, ROS and Cloud9
